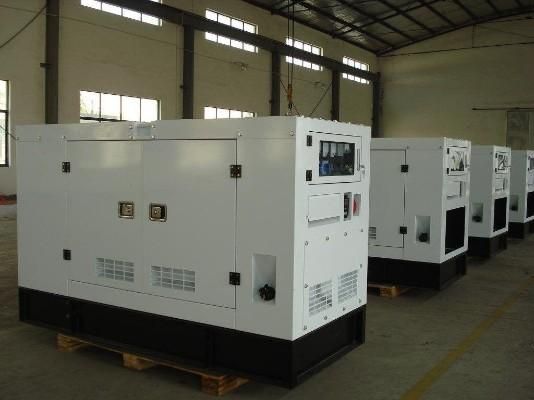

FAW 30KVA SILENT 3-PHASE DIESEL ATS GENERATOR SET.

Special high-temperature flame-retardant sound insulation sponge.
Slap-up hinge and door handle.
The Soundproof canopy is made up of 2mm thick powder coated steel.
Soundproof foam is 40mm to 50mm each side.
Noise Level: 75~78dB (1m radius); 72~74dB (7m radius).
The muffler is installed inside the canopy.

Engine specifications
==================

Diesel generator model: 4DW92-39D
Engine make: FAW
Displacement: 2,5451
Cylinder bore/Stroke: 90mm x 100mm
Fuel system: In-line fuel injection pump
Cylinders: 4
Cylinder arrangement: Vertical in-line
Engine output power: 29KW
Cycle: Four stroke
Combustion system: Direct injection
Compression ratio: 17.5.1
Fuel tank capacity: 2201
Fuel consumption 100%: 7.85 1/H
Fuel consumption 75%: 5.89 1/H
Fuel consumption 50%: 3.92 1/H
Fuel consumption 25%: 1.96 1/H
Oil type: 15W40
Oil capacity: 8L
Cooling method: Radiator water-cooled
Coolant capacity: 5.15L
Starter: 24v DC
Governor system: Electrical
Engine speed: 1500rpm

Features and Benefits
====================

Maximum 30kVA standby power at 230/400v @50Hz 1500rpm
Powerful FAW four-cylinder 1500rpm water cooled 4DW92-39D series diesel engine
Ideal for home and small business applications
Silent canopy which can stand outside with lockable doors
Automatic changeover (ATS), maintenance free batteries and trickle charger Included
Long range diesel tank allows for longer run times (180l)
Four-way protection system included
H-specification insulation, brushless alternator with AVR provides stable output
Easy to use digital controller with auto and manual start options
Peace of mind of earlier of one year/1000 hour warranty
